The linear bearing cage is an essential component of a linear rolling bearing built with the use of linear guides. The main task of the bearing cage is to hold the rolling elements inside the bearing on the guide's raceways in the correct operating position.

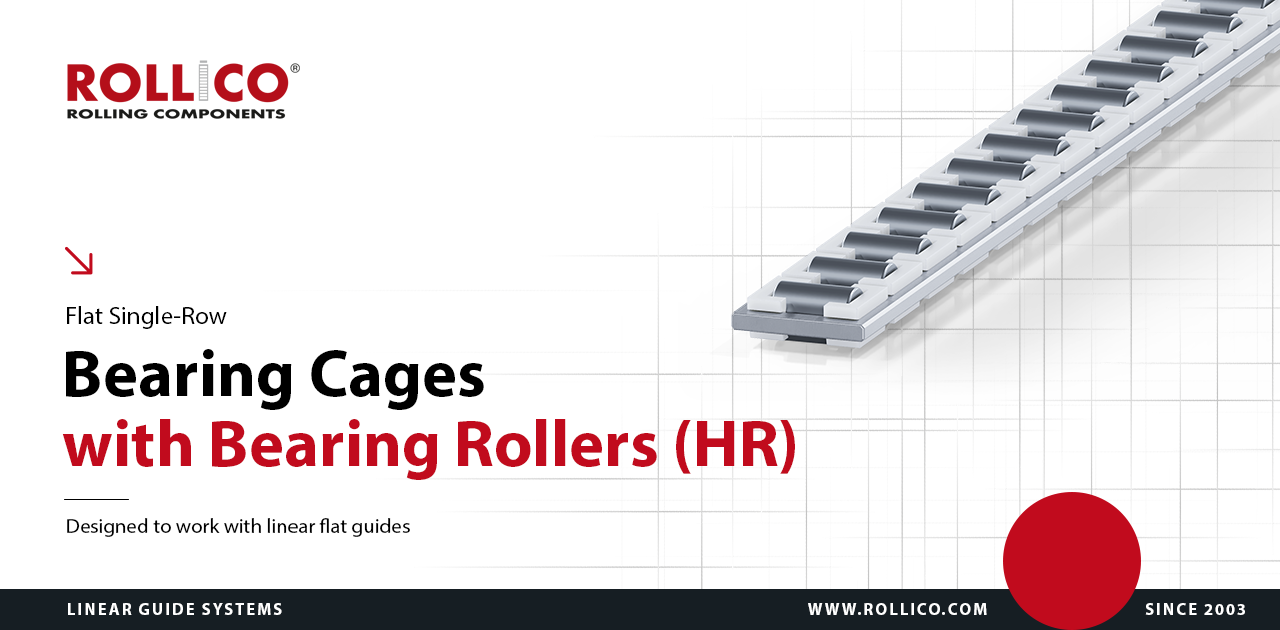

Flat single-row bearing cages with bearing rollers
Manufactured from profiles of light metals - aluminium (Al)x with polyamide inserts
High precision and strength at low deadweight (aluminium)
Destined for heavy-duty working conditions at high loads and accelerations
Working temperature up to 120°C
Technical drawing of HR bearing cages
Dimension table of of HR bearing cages
Roller
diameter
Ø
Type
/symbol
Dimensions
Load capacity *
Functional dimension
A
DW
LW
t
e
LK
max
C
[N]
CO
[N]
Ha
5
HR 50
10.5
5
5
10
6
2 000
29 400
50 800
10.9+0.2
7
HR 70
17
7
10
13
8
2 000
65 800
114 200
17.4+0.2
10
HR 100
24
10
14
17
10
2 000
109 900
174 200
24.4+0.2
*) - Load capacity for the theoretical length of the cage of 100 mm with the thrust force "F" in accordance to the drawing.
- The load capacity is calculated for guides with hardness of 60 +/- 2 HRc oand surface roughness of Ra<0.4.
- Load capacity of bearing cages is calculated on the basis of number of bearing needles mounted in the cage
- Length tolerance LK +0/-t
Weight table of HR bearing cages
Table for weight values of bearing cages
(for the length of Lk=1000 mm) [g]
Typ/symbol
Aluminium
HR 50
105
HR 70
295
HR 100
598
