Linear guides
Linear guides form the basis of a linear bearing. They usually take the form of a metal strip with fixing holes and a raceway for the rolling elements of the bearing cages. The raceway can be flat or profiled. The main task of linear guides is to transfer pressure from the machine parts to which they are bolted to the rolling elements and to provide the rolling elements with the best possible conditions for correct operation.

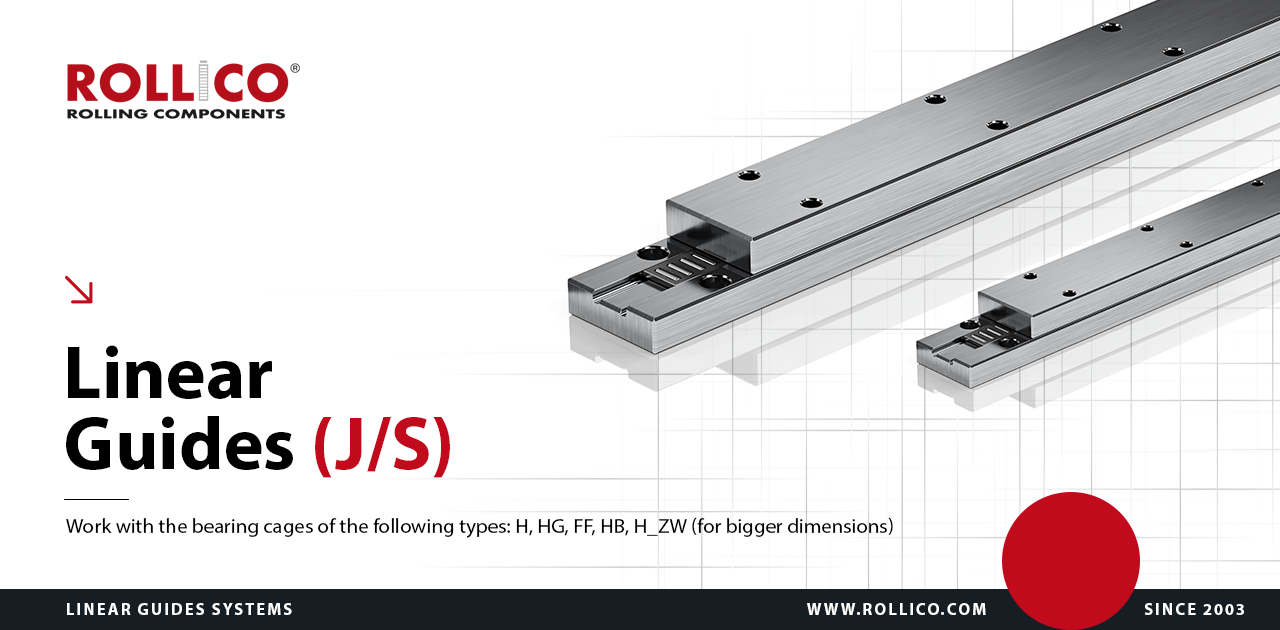

J/S
General Information
J/S-type linear guides are designed for heavy-duty applications. Flat needle, roller, or ball bearing cages, either single- or double-row, are used with these linear guides.
If required, J/S-type linear guides can be equipped with end pieces and wipers on the ends.
Standard J/S linear guides are made of tool steel grade 1.2842 with a hardness range of 58–62 HRC. A stainless-steel version made of 1.4034 steel with a minimum hardness of 54 HRC is also available.
Technical drawing of J/S type linear guides
Mounting hole types available for S/J- type linear guides
Dimension table of S/J-type linear guides
|
Type
|
Dimensions | Fixing holes | Head holes |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A
|
B
|
J
|
F
|
Dw
|
N
|
d
|
e
|
f
|
g
|
s
|
L1 | L2min | q | e | |
|
J/S3525
|
25
|
35
|
11.8
|
13
|
2
|
22
|
10
|
5.8
|
M5
|
6
|
35
|
80* | 15 |
8
|
M5 |
|
J/S4025
|
25
|
40
|
12.3
|
12.5
|
2.5
|
28
|
10
|
5.8
|
M5 |
6.5
|
40
|
80* | 15 |
8
|
M5 |
|
J/S5030
|
30
|
50
|
14.8
|
15
|
3
|
35
|
11.5
|
7.5
|
M6 |
8
|
50
|
100* | 15 |
10
|
M6 |
|
J/S5530
|
30
|
55
|
15.3
|
14.5
|
3.5
|
40 | 11.5 | 7.5 | M6 | 8.5 | 55 | 100* | 15 |
10
|
M6 |
|
J/S5025
|
50
|
25
|
27.7
|
22
|
2.5 | 10 | 11.5 | 7.5 | M6 | 18.2 | 15 | 80* | 20 | 9 | M6 |
|
J/S6035
|
60
|
35
|
34.7
|
25
|
2 | 11 | 15 | 10 | M8 | 26 | 20 | 100* | 20 | 9 | M6 |
|
J/S7040
|
70
|
40
|
39.7
|
30
|
2.5 | 13 | 18.5 | 12.5 | M10 | 29 | 25 | 100* | 20 | 9 | M6 |
|
J/S8050
|
80
|
50
|
44.7
|
35
|
3 | 14 | 20 | 14 | M12 | 37 | 30 | 100* | 20 | 9 | M6 |
| * L1=50, when L |
|||||||||||||||
Table of available lengths and accessories
|
Type
|
L |
L |
Bearing cages |
End pieces |
End pieces with plactic wipers |
|---|---|---|---|---|---|
|
J3525
|
80-1000 | 1000 | H10 FF2010 HG10 | EJ35 | EAJ35 |
|
S3525
|
80-1000 | 1000 | - | - | |
|
J4025
|
80-1000 | 1000 | H15 FF2515 HG15 | EJ40 | EAJ40 |
|
S4025
|
80-1000 | 1000 | - | - | |
|
J5030
|
80-1000 | 1000 | H20 FF3020 BF3020 HB3020 HG20 | EJ50 | EAJ50 |
|
S5030
|
80-1000 | 1000 | - | - | |
|
J5530
|
80-1000 | 1000 | H25 FF3525 HB4020 HG25 | EJ55 | EAJ55 |
| S5530 | 80-1000 | 1000 | - | - | |
| J5025 | 800 | H15 FF2515 HB2515 HG15 | EJ5025 | EAJ5025 | |
| S5025 | 800 | - | - | ||
| J6035 | 1000 | H24ZW | EJ6035 | EAJ6035 | |
| S6035 | 1000 | - | - | ||
| J7040 | 1200 | H34ZW | EJ7040 | EAJ7040 | |
| S7040 | 1200 | - | - | ||
| S8050 | 1200 | H44ZW | EJ8050 | EAJ8050 | |
| J8050 | 1200 | - | - |
