Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
IALGSO

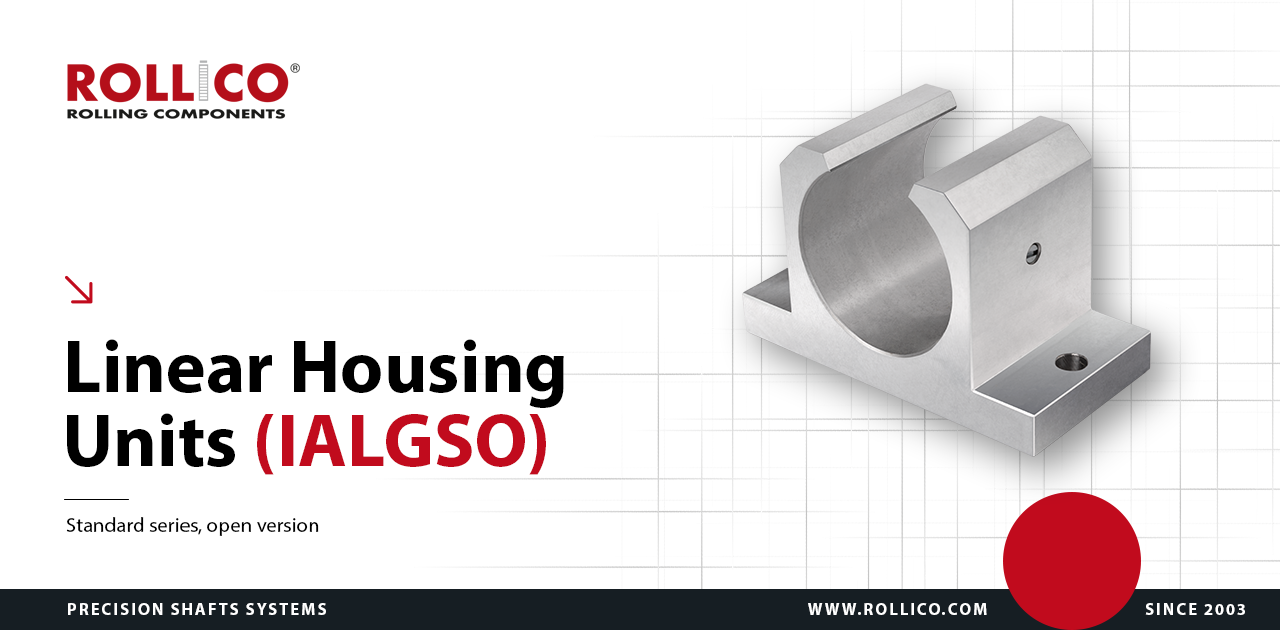

IALGSO-type linear housing units
Standard open version
Standard open version
Technical drawing of IALGSO type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
Dimension table of IALGSO type linear housing unit
|
Type
|
Ød
|
ØD
|
H
|
h
±0.015 |
A
|
A1
|
L
|
L1
|
T1
|
E1
|
E2
±0.15 |
W 1)
|
Ød1
|
Weight*
[kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IALGSO-12
|
12
|
22
|
28
|
18
|
52
|
30
|
32
|
20
|
6
|
10
|
42
|
7.5
|
5.3
|
0.09
|
|
IALGSO-16
|
16
|
26
|
33.5
|
22
|
56
|
34
|
36
|
22
|
7
|
11
|
46
|
10
|
5.3
|
0.12
|
|
IALGSO-20
|
20
|
32
|
42
|
25
|
70
|
40
|
45
|
28
|
8
|
14
|
58
|
10
|
6.4
|
0.25
|
|
IALGSO-25
|
25
|
40
|
51
|
30
|
80
|
50
|
58
|
40
|
10
|
20
|
68
|
12.5
|
6.4
|
0.49
|
|
IALGSO-30
|
30
|
47
|
60
|
35
|
88
|
58
|
68
|
48
|
10
|
24
|
76
|
12.5
|
6.4
|
0.78
|
|
IALGSO-40
|
40
|
62
|
77
|
45
|
108
|
74
|
80
|
56
|
12
|
28
|
94
|
16.8
|
8.4
|
1.28
|
|
IALGSO-50
|
50
|
75
|
93
|
50
|
135
|
96
|
100
|
72
|
12
|
36
|
116
|
21
|
10.5
|
1.70
|
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980. Load capacity as per the linear ball bearing specification. Lubrication port: M8x1 1) Values for the LME..UUOP series 2) Housing angle; note the angle of the bearing used * Weight refers to the housing unit including the linear ball bearing. |
||||||||||||||
Designation Method
|
Linear ball bearing
|
IALGSO
|
20
|
|
|---|---|---|---|
| Series | |||
| Size |
|
Housing unit with linear ball bearing
|
IALGSO
|
20
|
LME_UU_OP
|
|---|---|---|---|
| Series | |||
| Size | |||
| Acc. to the customer's request: LME_UU_OP, SBEO_UU, SPM_OPN_WW |
|||
