Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
IGO

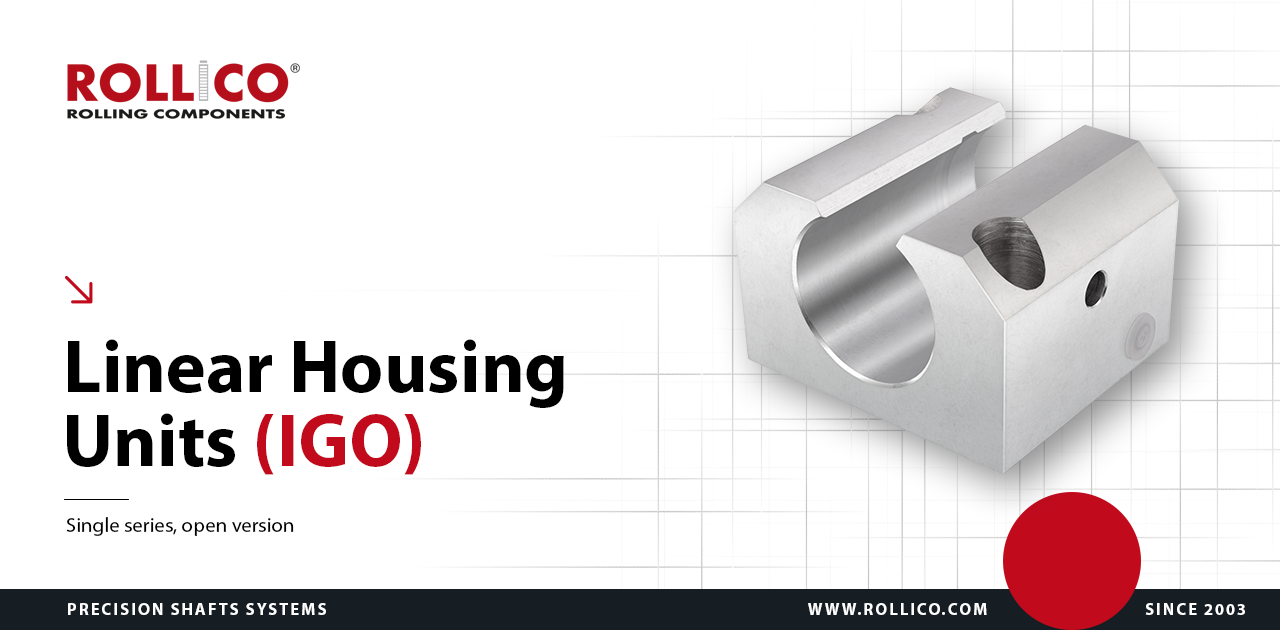

IGO-type linear housing units
Single, open version
Single, open version
Technical drawing of IGO type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
The product shape may slightly differ from the one shown in the photo/drawing.
Dimension table of IGO type linear housing unit
|
Type
|
Ød
|
ØD
|
H
|
h
+0.01 -0.02 |
A
|
A1
±0.02 |
L
|
E1
±0.15 |
E2
±0.15 |
N1
|
N2
|
N3
|
L1
|
N4
|
Ød1
|
Ød2
|
M
|
W1)
|
Weight*
[kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IGO-12
|
12
|
22
|
28
|
18
|
43
|
21.5
|
39
|
23
|
32
|
11
|
16.5
|
10
|
10.5
|
16.65
|
4.2
|
8
|
M5
|
7.5
|
0.11
|
|
IGO-16
|
16
|
26
|
35
|
22
|
53
|
26.5
|
43
|
26
|
40
|
13
|
21
|
10
|
11.5
|
22
|
5.2
|
10
|
M6
|
10
|
0.17
|
|
IGO-20
|
20
|
32
|
42
|
25
|
60
|
30
|
54
|
32
|
45
|
18
|
24
|
10
|
13.5
|
25
|
6.8
|
11
|
M8
|
10
|
0.30
|
|
IGO-25
|
25
|
40
|
51
|
30
|
78
|
39
|
67
|
40
|
60
|
22
|
29
|
10
|
15
|
31.5
|
8.6
|
15
|
M10
|
12.5
|
0.57
|
|
IGO-30
|
30
|
47
|
60
|
35
|
87
|
43.5
|
79
|
45
|
68
|
22
|
34
|
11.5
|
16
|
33
|
8.6
|
15
|
M10
|
12.5
|
0.86
|
|
IGO-40
|
40
|
62
|
77
|
45
|
108
|
54
|
91
|
58
|
86
|
26
|
44
|
14
|
18
|
43.5
|
10.3
|
18
|
M12
|
16.8
|
1.60
|
|
IGO-50
|
50
|
75
|
88
|
50
|
132
|
66
|
113
|
50
|
108
|
34
|
49
|
12,5
|
22
|
47.5
|
14
|
20
|
M16
|
21
|
2.20
|
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980. Load capacity as per the linear ball bearing specification. Lubrication port: M8x1. The linear bearing position is determined by a screw. 1) values for LME..UUOP 2) housing angle; note the angle of the bearing used * Weight refers to the housing unit including the linear ball bearing. |
|||||||||||||||||||
Designation Method
|
Linear ball bearing
|
IGO
|
20
|
|
|
|---|---|---|---|---|
| Series | ||||
| Size |
|
Housing unit with linear ball bearing
|
IGO
|
20
|
LME_UU_OP
|
V |
|---|---|---|---|---|
| Series | ||||
| Size | ||||
| Acc. to the customer's request: LME_UU_OP, SBEO_UU, SPM_OPN_WW |
||||
| Additional front wipers | ||||
