Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
IQSG

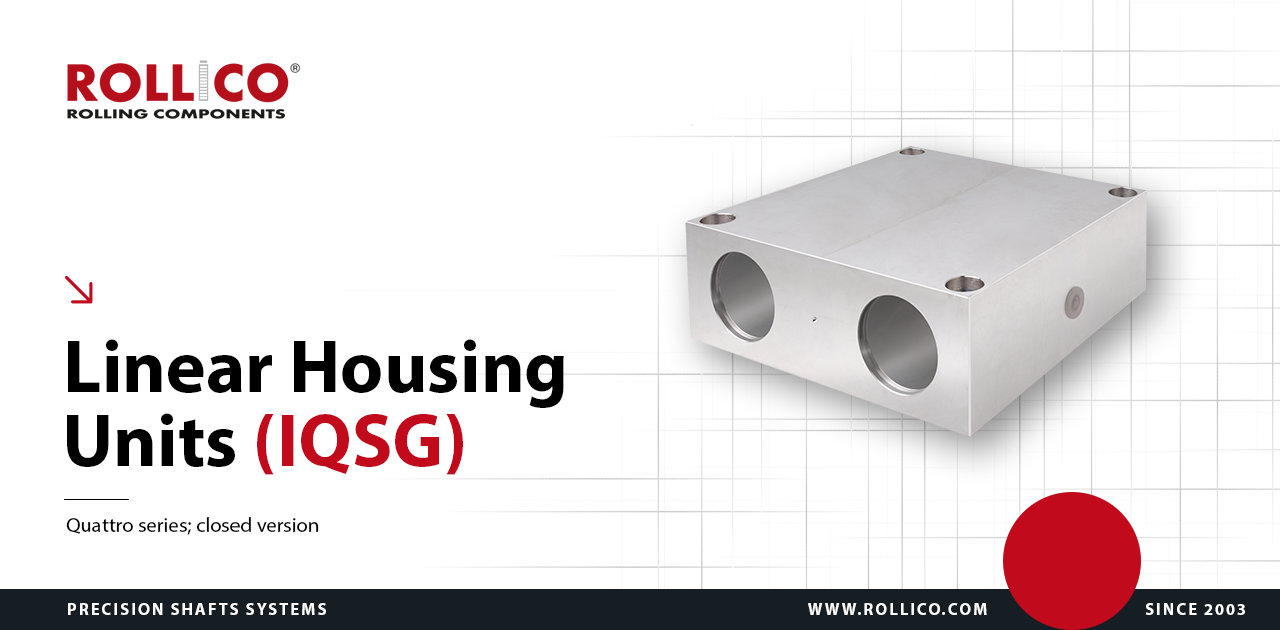

Quattro, closed version
Technical drawing of ITQSG type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
The product shape may slightly differ from the one shown in the photo/drawing.
Dimension table of IQSG type linear housing unit
|
Type |
Ød |
ØD |
H |
h |
A |
R |
E |
N1 |
N3 |
Ød1 |
Ød2 |
M |
Weight* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IQSG-08 |
8 |
16 |
23 |
11.5 |
65 |
32 |
55 |
11 |
19.5 |
4.2 |
8 |
M5 |
0.18 |
|
IQSG-12 |
12 |
22 |
32 |
16 |
85 |
42 |
73 |
13 |
27 |
5.2 |
10 |
M6 |
0.45 |
|
IQSG-16 |
16 |
26 |
36 |
18 |
100 |
54 |
88 |
13 |
31 |
5.2 |
10 |
M6 |
0.63 |
|
IQSG-20 |
20 |
32 |
46 |
23 |
130 |
72 |
115 |
18 |
39 |
6.8 |
11 |
M8 |
1.45 |
|
IQSG-25 |
25 |
40 |
56 |
28 |
160 |
88 |
140 |
22 |
48 |
8.6 |
15 |
M10 |
2.65 |
|
IQSG-30 |
30 |
47 |
64 |
32 |
180 |
96 |
158 |
26 |
55 |
10.3 |
18 |
M12 |
3.7 |
|
IQSG-40 |
40 |
62 |
80 |
40 |
230 |
122 |
202 |
34 |
71 |
14 |
20 |
M16 |
7.3 |
|
IQSG-50 |
50 |
75 |
96 |
48 |
280 |
152 |
250 |
34 |
86 |
14 |
20 |
M16 |
13 |
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980. Load capacity as per the linear ball bearing specification. Lubrication port: M8x1. The linear bearing position is determined by a retaining ring in accordance with DIN 472. * Weight refers to the housing unit including the linear ball bearing. |
|||||||||||||
