Linear housing units
Linear housing units provide a reliable base for precise guidance. Their application has a positive impact on design simplicity and assembly of linear motion systems, maintenance time reduction, and operational repeatability enhancement.
ITGC

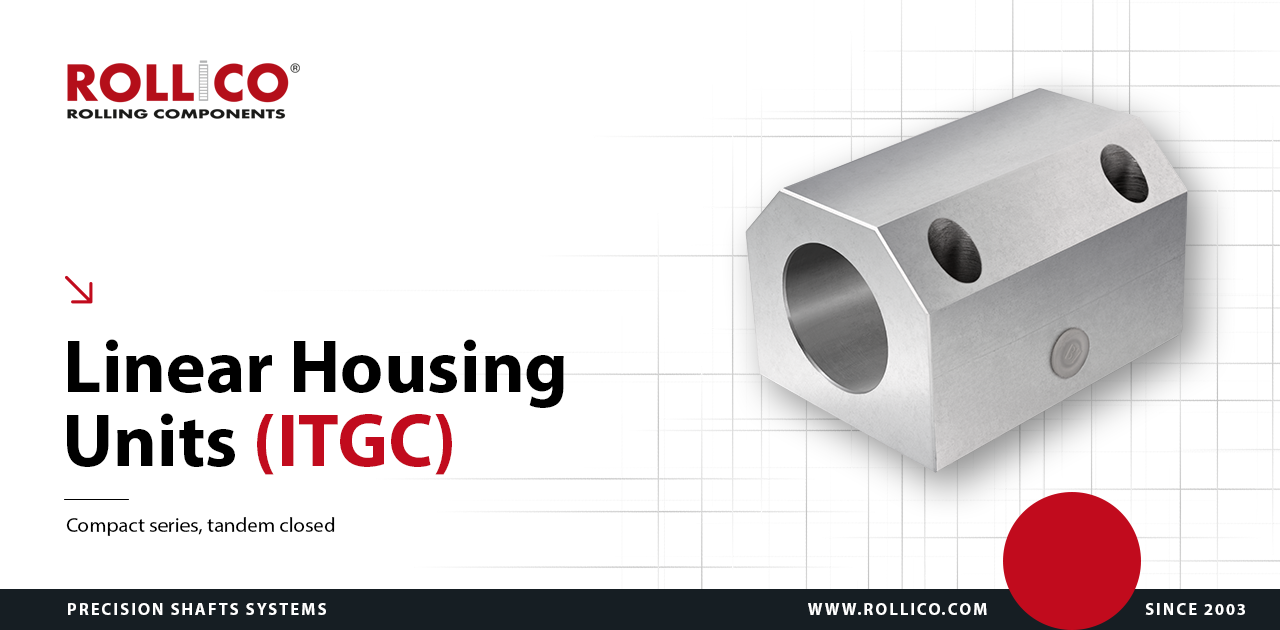

ITGC-type linear housing units
Compact series, tandem closed version
Compact series, tandem closed version
Technical drawing of ITGC type linear housing unit
Note: The drawing shows the housing in an assembled form together with the linear ball bearing.
Dimension table of ITGC type linear housing unit
|
Type
|
Ød
|
ØD
|
H
|
h
+0.01 -0.02 |
A
|
L
|
E1
±0.15 |
E2
±0.15 |
E3
|
N1
|
N2
|
Ød1
|
M
|
Weight*
[kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITGC-12
|
12
|
19
|
33
|
17
|
40
|
60
|
35
|
29
|
30.0
|
11
|
16
|
4.3
|
M5
|
0.18
|
|
ITGC-16
|
16
|
24
|
38
|
19
|
45
|
65
|
40
|
34
|
32.5
|
11
|
18
|
4.3
|
M5
|
0.27
|
|
ITGC-20
|
20
|
28
|
45
|
23
|
53
|
65
|
45
|
40
|
32.5
|
13
|
22
|
5.3
|
M6
|
0.32
|
|
ITGC-25
|
25
|
35
|
54
|
27
|
62
|
85
|
55
|
48
|
42.5
|
18
|
26
|
6.6
|
M8
|
0.66
|
|
ITGC-30
|
30
|
40
|
60
|
30
|
67
|
105
|
70
|
53
|
52.5
|
18
|
29
|
6.6
|
M8
|
0.95
|
|
ITGC-40
|
40
|
52
|
76
|
39
|
87
|
125
|
85
|
69
|
62.5
|
22
|
38
|
8.4
|
M10
|
1.82
|
|
ITGC-50
|
50
|
62
|
92
|
47
|
103
|
145
|
100
|
82
|
72.5
|
26
|
46
|
10.5
|
M12
|
2.52
|
| All dimensions in the table are in [mm], unless stated otherwise. Set screws in accordance with z DIN 912-8.8, spring washers per z DIN 7980. Load capacity as per the linear ball bearing specification. Lubrication port: M8x1 * Weight refers to the housing unit including the linear ball bearing. |
||||||||||||||
