Precision shafts
Precision linear shafts represent an important category of linear guidance elements. In combination with shaft support blocks, housing units, linear ball bearings, and other accessories, they form a reliable and cost-effective linear motion system.
Linear systems based on precision shafts are widely used in variety of applications where, there is precise linear motion required- from automation and robotics to CNC machines and industrial positioning applications.
W

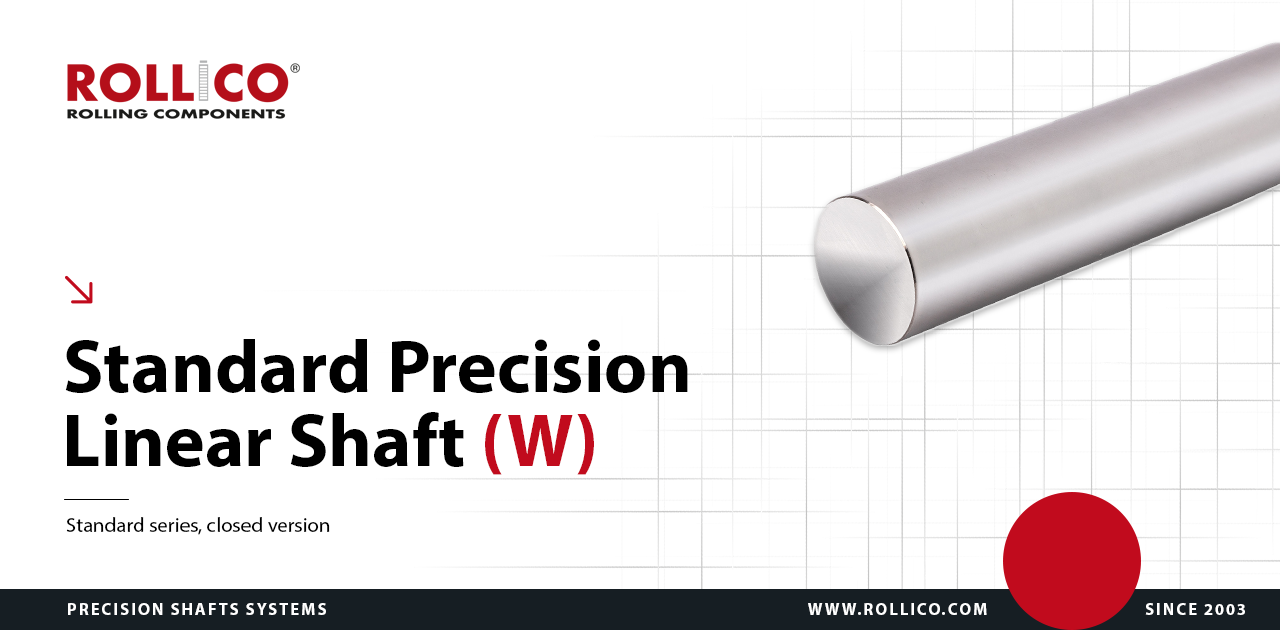

Precision linear shafts, designated as W_h6, are made of induction-hardened and ground Cf53 steel.
Key specifications of W series shafts:
Technical drawing of W type precision shafts
Dimension table of W type precision shafts
|
Type
|
Shaft's diameter Ød [mm] |
L (max)
[mm] |
Weight
[kg/m] |
Diameter tol. ISO h6 [µm] |
T1
[µm] |
T2 1)
[µm] |
T3 2)
[mm] |
Min. hardened layer thickness [mm] |
|---|---|---|---|---|---|---|---|---|
|
W3
|
3
|
2000
|
0.055
|
0 /-6
|
3
|
4
|
0.3
|
0.4 3)
|
|
W4
|
4
|
6000
|
0.098
|
0 /-8
|
4
|
5
|
0.3
|
0.4 3)
|
|
W5
|
5
|
6000
|
0.154
|
0 /-8
|
4
|
5
|
0.3
|
0.4 3)
|
|
W6
|
6
|
6000
|
0.222
|
0 /-8
|
4
|
5
|
0.3
|
0.4
|
|
W8
|
8
|
6000
|
0.394
|
0 /-9
|
4
|
6
|
0.3
|
0.4
|
|
W10
|
10
|
6000
|
0.616
|
0 /-9
|
4
|
6
|
0.3
|
0.4
|
|
W12
|
12
|
6000
|
0.888
|
0 /-11
|
5
|
8
|
0.3
|
0.6
|
|
W14
|
14
|
6000
|
1.208
|
0 /-11
|
5
|
8
|
0.3
|
0.6
|
|
W15
|
15
|
6000
|
1.387
|
0 /-11
|
5
|
8
|
0.3
|
0.6
|
|
W16
|
16
|
6000
|
1.578
|
0 /-11
|
5
|
8
|
0.2
|
0.6
|
|
W18
|
18
|
6000
|
1.997
|
0 /-11
|
5
|
8
|
0.2
|
0.6
|
|
W20
|
20
|
6000
|
2.466
|
0 /-13
|
6
|
9
|
0.2
|
0.9
|
|
W22
|
22
|
6000
|
2.980
|
0 /-13
|
6
|
9
|
0.2
|
0.9
|
|
W24
|
24
|
6000
|
3.551
|
0 /-13
|
6
|
9
|
0.2
|
0.9
|
|
W25
|
25
|
6000
|
3.853
|
0 /-13
|
6
|
9
|
0.2
|
0.9
|
|
W28
|
28
|
6000
|
4.833
|
0 /-13
|
6
|
9
|
0.2
|
0.9
|
|
W30
|
30
|
6000
|
5.549
|
0 /-13
|
6
|
9
|
0.2
|
0.9
|
|
W32
|
32
|
6000
|
6.313
|
0 /-16
|
7
|
11
|
0.2
|
1.5
|
|
W35
|
35
|
6000
|
7.552
|
0 /-16
|
7
|
11
|
0.2
|
1.5
|
|
W38
|
38
|
6000
|
8.905
|
0 /-16
|
7
|
11
|
0.2
|
1.5
|
|
W40
|
40
|
6000
|
9.864
|
0 /-16
|
7
|
11
|
0.2
|
1.5
|
|
W45
|
45
|
6000
|
12.520
|
0 /-16
|
7
|
11
|
0.2
|
1.5
|
|
W50
|
50
|
6000
|
15.413
|
0 /-16
|
7
|
11
|
0.2
|
1.5
|
|
W55
|
55
|
6000
|
18.640
|
0 /-19
|
8
|
13
|
0.2
|
1.5
|
|
W60
|
60
|
6000
|
22.195
|
0 /-19
|
8
|
13
|
0.2
|
2.2
|
|
W65
|
65
|
6000
|
26.054
|
0 /-19
|
8
|
13
|
0.2
|
2.2
|
|
W70
|
70
|
6000
|
30.210
|
0 /-19
|
8
|
13
|
0.2
|
2.2
|
|
W80
|
80
|
6000
|
39.458
|
0 /-19
|
8
|
13
|
0.2
|
2.2
|
|
W90
|
90
|
6000
|
49.950
|
0 /-22
|
10
|
15
|
0.2
|
2.2
|
|
W100
|
100
|
6000
|
61.620
|
0 /-22
|
10
|
15
|
0.2
|
2.2
|
| 1) Diameter differential measurement over the length of 1000 mm 2) Measurement in accordance with DIN ISO 13012 3) Through-hardening permitted |
||||||||
We offer custom shaft cutting to any desired length as well as additional machining operations upon request.
Available machining options include:
More details about shaft finishing and machining services are available upon request.
Ordering Made Easy – Quick Center
To streamline your experience, we offer our Quick Center system – a fast-track service that delivers cut-to-length and machined precision shafts within 2 business days.
