Compact rolling modules which, when combined with linear guideways, eliminate the problem of limited stroke and ensure high precision as well as uniform load distribution in all directions.

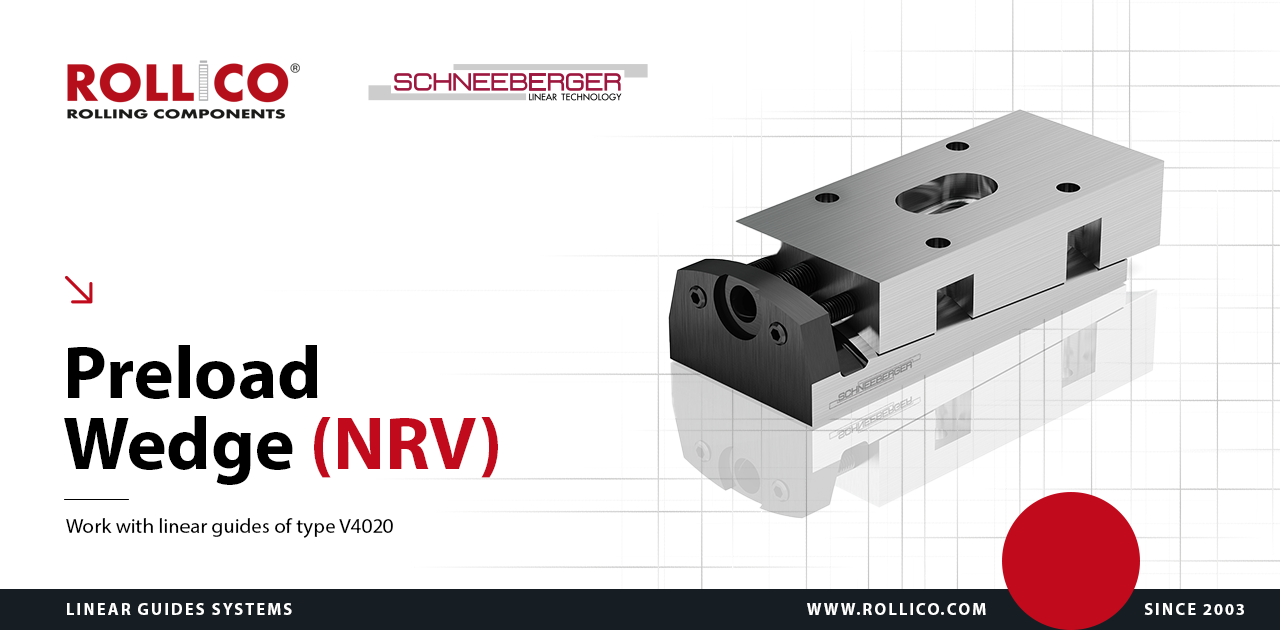

NRV preload wedge is used for setting preload at NRT recirculating unit. The NRV with its concave and convex supporting surfaces is also able to even out minor angular errors and defor mations in the connecting structure.
Technical Specifications
Maximum feed rate: 1 m/s
Maximum acceleration: 50 m/s2
Operating temperature range: -40 ºC to +80 ºC
Technical drawing of NRV type preload wedge
Dimension table of NRV type preload wedge
Type and Size
Weight [g]
A
B
H max.
L max.
L1
L2
L3
L4 max.
L5
L6
N
b
b1
d
d1
e
e1
f
g
NRV 19077
195
16
27
7
72
25.5
22.5
16.5
68
61
56
20.6
7
9
7
9
M4
M3
3.3
4.5
NRV 26111
670
25
40
8
105
44
29
21
98
90
83
30
9
17.5
8
11
M6
M4
5
8
NRV 26132
837
126
68
27.5
19.5
119
111
104
29.5
NRV 38144
1300
30
52
8
130
51
37.5
28.5
121
113
105
41
10
20.5
11
14
M8
M6
6.8
8
