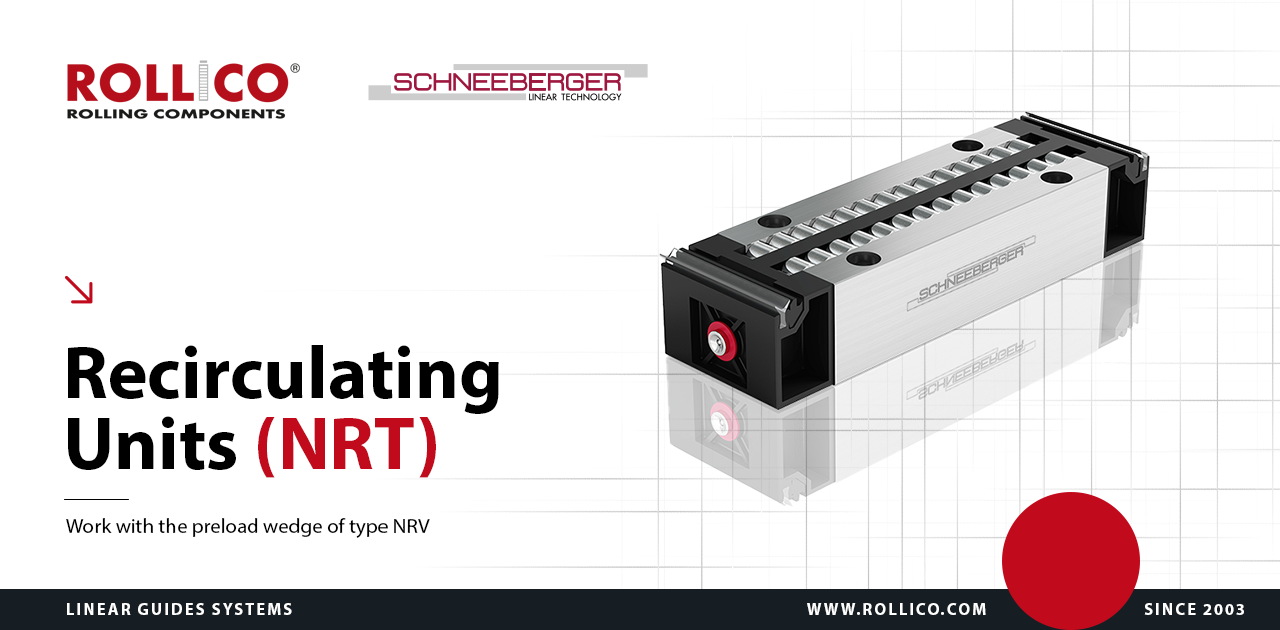

Compact rolling modules which, when combined with linear guideways, eliminate the problem of limited stroke and ensure high precision as well as uniform load distribution in all directions.
The NRT-type unit, equipped with cylindrical rollers, is designed for demanding applications under medium to high loads, offering high stiffness and positioning precision.
These units are particularly recommended where high motion smoothness and minimal side forces are critical. Their optimized internal geometry ensures extremely low motion pulsation, resulting in excellent positioning accuracy.
Technical Specifications
Maximum feed rate: 1 m/s
Maximum acceleration: 50 m/s2
Operating temperature range: -40 ºC to +80 ºC
Technical drawing of NRT type recirculating units
Dimension table of NRT type recirculating units
Type & Size
Weight [g]
A
B
Dw
G
Kt
L
L1
L2
Lw
N
d
e
f
f1
g
g1
m
C[N]
Additional Options
NRT 19077
185
19
27
5
18.85
45
77
25.5
49.2
13
20.6
6
M4
3.3
6
15.5
6
5.3
43 000
GP
ZS
NRT 26111
570
26
40
7
25.85
70
111
44
75.6
19
30
8
M6
5
9
20
10
10.3
98 000
GP
ZS
NRT 26132
721
91
132
68
96.6
20.6
120 000
GP
ZS
NRT 38144
1390
38
52
10
37,.
90
144
51
96.8
26
41
11
M8
6,8
11
29
14
14.5
181 000
GP
ZS
