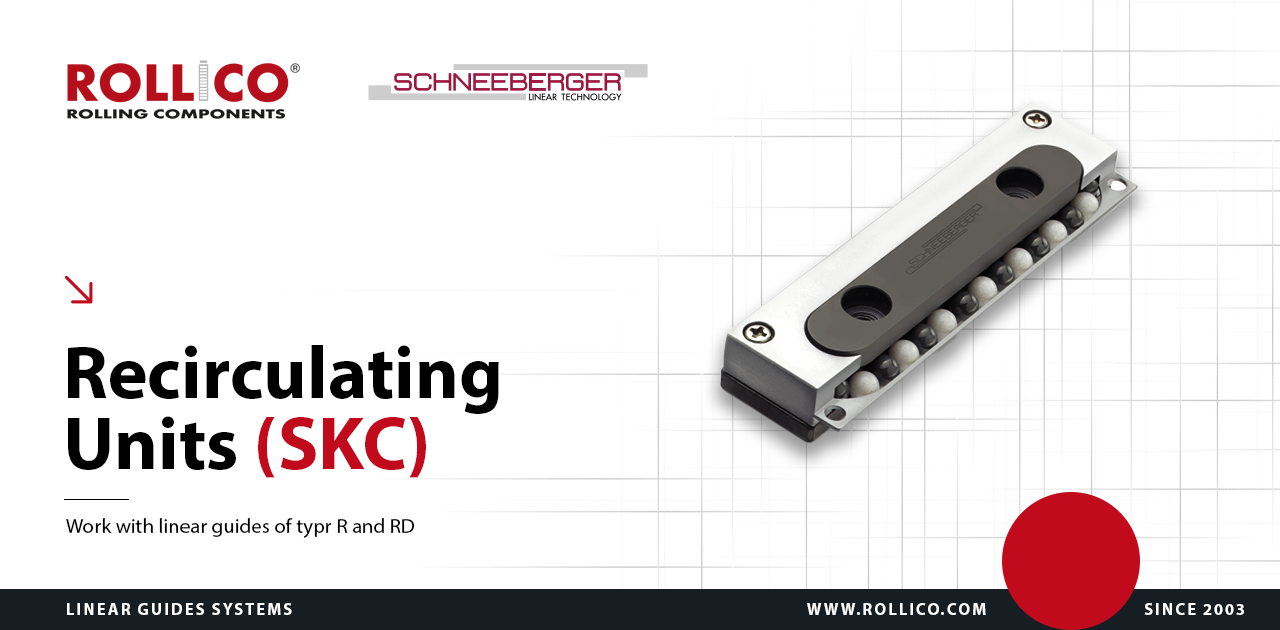

Compact rolling modules which, when combined with linear guideways, eliminate the problem of limited stroke and ensure high precision as well as uniform load distribution in all directions.
The SKC-type unit is designed for applications requiring minimal lubrication, vacuum compatibility, and/or cleanroom operation. It is made of DURALLOY®-coated steel and features ceramic balls separated by TEFLON® spacers.
Designed for use with Schneeberger type Rand/or RD linear guides, the SKC unit is an excellent choice for compact systems with evenly distributed loads in all directions. Suitable for light to medium loads.
Technical Specifications
Maximum feed rate: 2 m/s
Maximum acceleration: 50 m/s2
Operating temperature range: -150ºC to +200 ºC
Technical drawing of SKC type recirculating units
Dimension table of SKC type recirculating units
Type and Size
Weight [g]
B
Dw
F
H
J
Kt
L
L1
N
a
d
e
f
g
o
C [N]
Options
SKC 3-075
44
8
3
16.9
14.5
13.8
48
75
25
9
0.5
6
M4
3.3
4.9
2.4
75
GP
SKC 6-100
212
15
6
28.9
24.5
22.9
60
100
50
15
1
9.5
M6
5.2
9.8
4.4
125
GP
