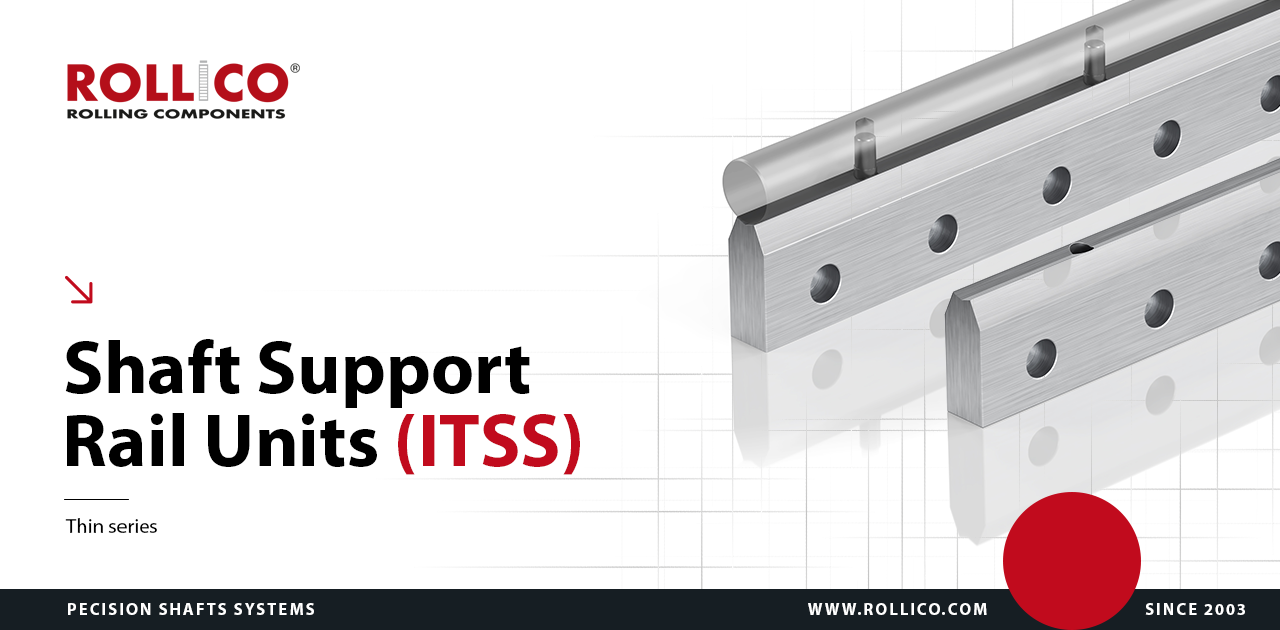

Shaft support rail units are essential for ensuring full stability along the entire length of the precision shaft. By providing continuous support, they effectively eliminate deflection and increase the overall rigidity of the system. These units are particularly well-suited for dynamic applications where low weight and high guiding precision are critical.
Technical drawing of ITSS type shaft support rail unit
Dimension table of ITSS type shaft support rail unit
Type
Ød
A
h
N
A1
W
Ød1
Ød2
V2
V1
T
LMAX1)
Weight2)
[kg]
ITSS-20
20
15
52
15
7.5
8.3
6.6
11
8.5
8.5
100
600
0.85
ITSS-25
25
20
62
18
10
10
9
15
15
11
120
600
1.35
ITSS-30
30
25
72
21
12.5
11
11
18
15.3
13.5
150
600
1.85
ITSS-40
40
30
88
25
15
15
14
20
17.5
16
200
600
2.65
ITSS-50
50
35
105
30
17.5
19
15.5
24
21.5
18.5
200
600
3.55
All dimensions in the table are provided in [mm], unless otherwise specified.
Depending on the shaft length, the support may consist of multiple sections. 1) Maximum length of a single support unit. 2) Weight specified without shaft (based on 600 mm length)
