LFZ/LFE

Track Rollers

LFR Track Rollers for Support Rail Units with LZF/LFE type Concentric and Excentrix Bolts.

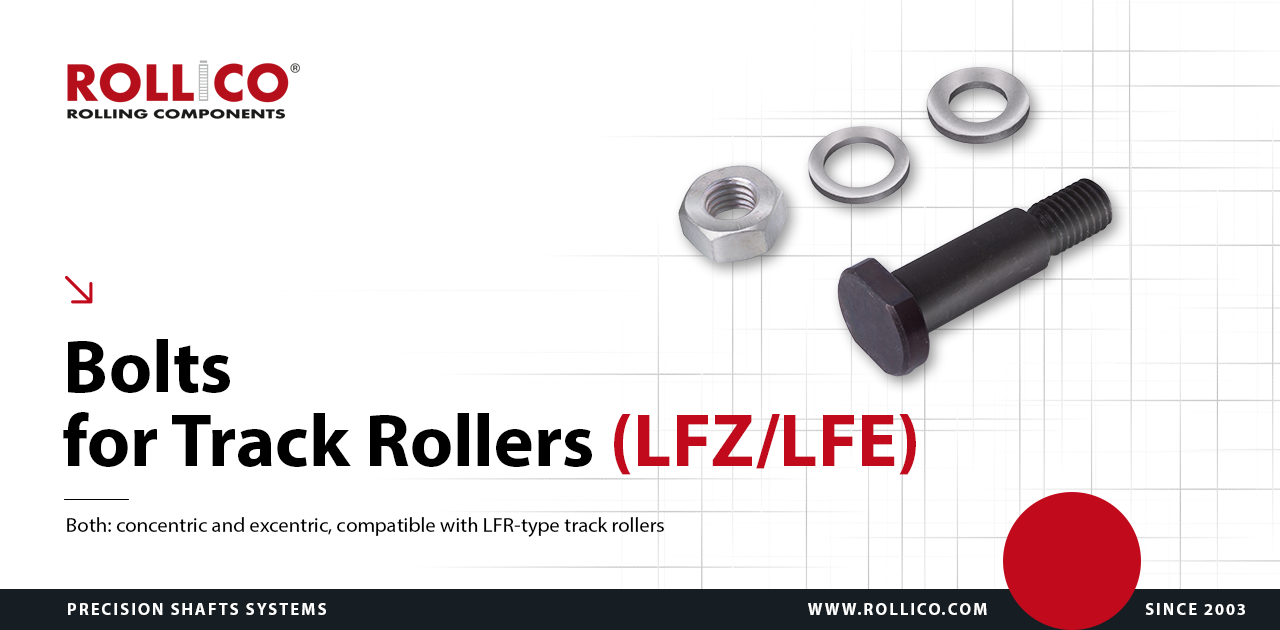

LFZ/LFE-type concentric and excentrix bolts for track rollers

Type	L	L1	L2	L3	L4	L7	A5	d	d1	Dk	G1	G2	H1	S	Ds	ds	E	SW	SW1	SW2	Weight [g]
LFZ5, LFE5	19.5	20.5	16	9.5	9	-	15	5	-	-	M4	M4	2.9	-	-	-	0.5	3	7	2	10
LFZ8, LFE8	28.3	33.2	24.3	15	13.7	3.5	22	8	-	-	M8	M8x0.75	4	1	14	-	1	12	13	5	20
LFZ12, LFE12	43	50	36	22	19.5	5	33.5	12	-	-	M10	M10	8.4	1.8	21	-	1	17	17	6	40
LFZ12/M12, LFE12/M12	50.8	57	43.8	24	24	5	41	12	-	-	M12	M12	6.5	1.8	19	-	1	17	17	6	60
LFZ15, LFE15	50.8	57	43.8	26	24	5	41	15	-	-	M12	M12	6.5	1.8	21	-	1	19	19	6	60
LFZ12x45A1, LFE12x45A1	50	-	45	16	-	-	30	12	10	20	M10x1.5	-	8	2	21	5.9	0.75	17	17	-	40
LFZ20x67A1, LFE20x67A1	75	-	67	23	-	-	45	20	17	30	M16x1.5	-	13	3	30	5.9	1	27	24	-	200
LFZ25x82A1, LFE25x82A1	92	-	82	30	-	-	57	25	22	40	M20x1.5	-	16	3	37	5.9	1	36	30	-	400
LFZ30x95A1, LFE30x95A1	107	-	95	32	-	-	67	30	27	45	M24x1.5	-	19	4	44	5.9	1	41	36	-	620
LFZ40x107A1, LFE40x107A1	117	-	107	42	-	-	72	40	36	55	M30x1.5	-	24	4	56	5.9	1	46	46	-	1100
LFZ40x115A1, LFE40x115A1	125	-	115	42	-	-	72	40	36	55	M30x1.5	-	24	4	56	5.9	1	46	46	-	1200
All dimensions in the table are given in [mm], unless stated otherwise.
