Shaft support blocks
Made of aluminum; precision shaft support blocks provide stable and precise mounting offering a balance between rigidity and low weight, making them an ideal choice for high-dynamic applications with strict weight limitations.
IGWK

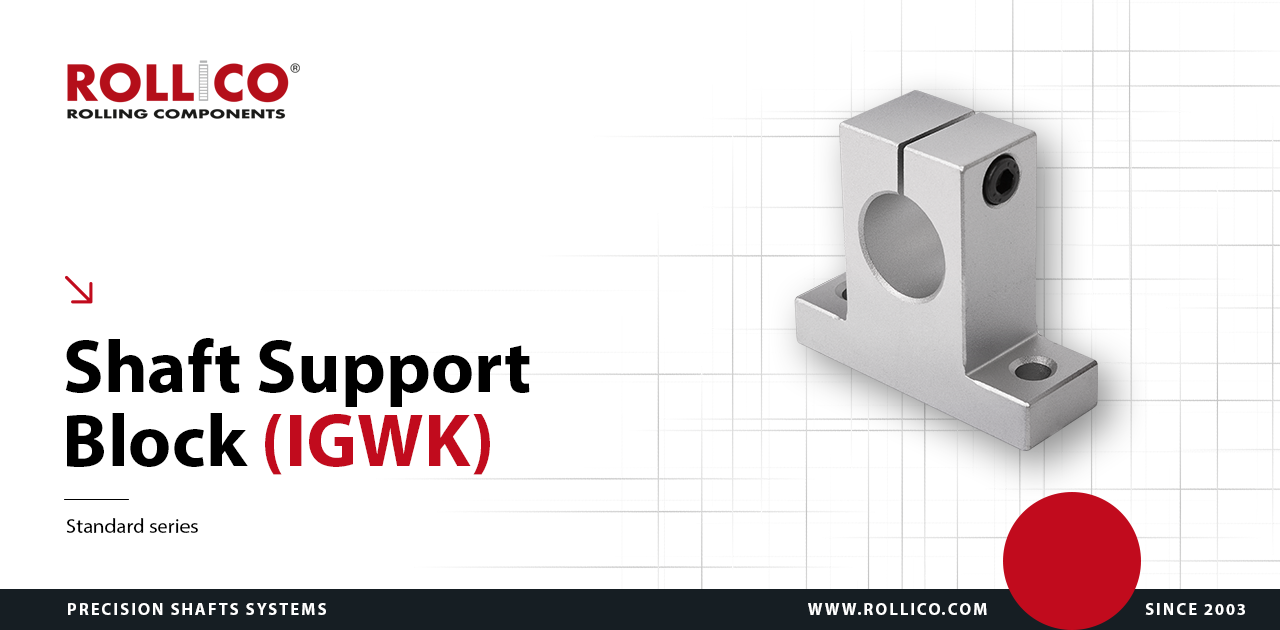

IGWK-type shaft support blocks
Standard series
Standard series

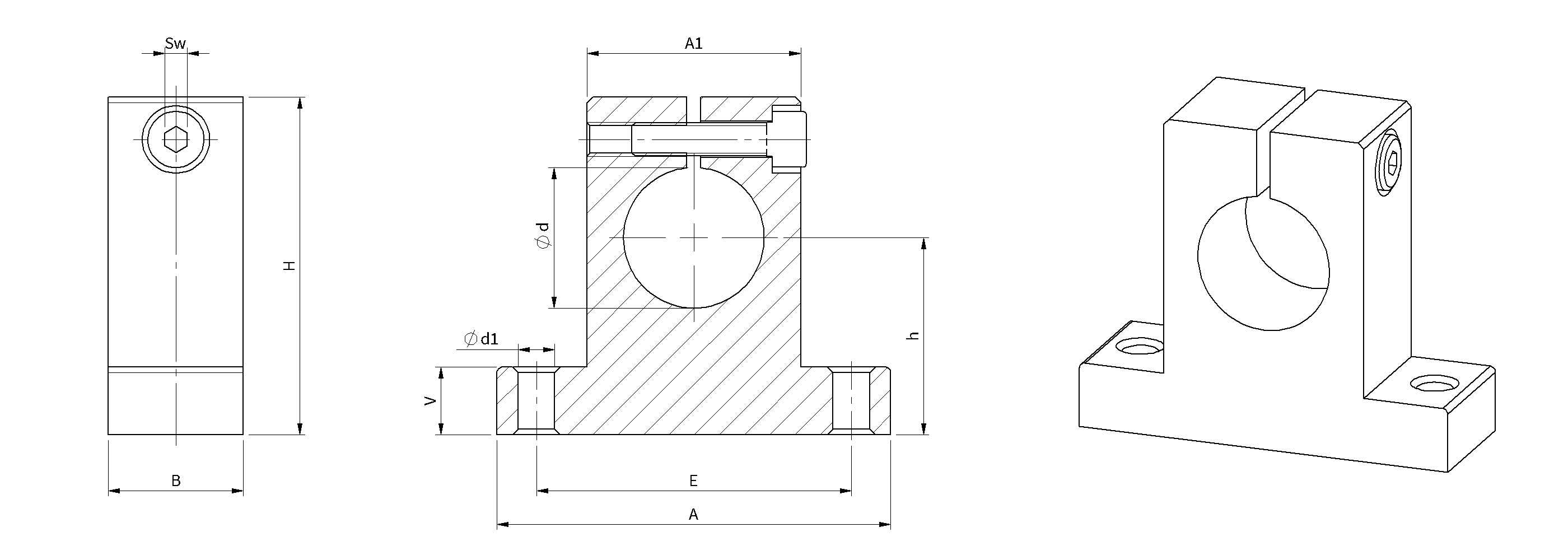

Technical drawing of IGWK type shaft support block
Dimension table of IGWA type shaft support blocks
|
Type |
Ød |
H |
h |
A |
A1 |
B |
E |
Ød1 |
V |
SW |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IGWK-08 |
8 |
32.8 |
20 |
42 |
18 |
14 |
32 |
5.5 |
6.0 |
3 |
0.024 |
|
IGWK-10 |
10 |
32.8 |
20 |
42 |
18 |
14 |
32 |
5.5 |
6.0 |
3 |
0.024 |
|
IGWK-12 |
12 |
37.5 |
23 |
42 |
20 |
14 |
32 |
5.5 |
6.0 |
3 |
0.03 |
|
IGWK-16 |
16 |
44 |
27 |
48 |
25 |
16 |
38 |
5.5 |
8.0 |
3 |
0.04 |
|
IGWK-20 |
20 |
51 |
31 |
60 |
30 |
20 |
45 |
6.6 |
10.0 |
4 |
0.07 |
|
IGWK-25 |
25 |
60 |
35 |
70 |
38 |
24 |
56 |
6.6 |
12.0 |
5 |
0.13 |
|
IGWK-30 |
30 |
70 |
42 |
84 |
44 |
28 |
64 |
9.0 |
12.0 |
5 |
0.18 |
|
IGWK-35 |
35 |
82 |
50 |
98 |
50 |
32 |
74 |
11.0 |
16.0 |
6 |
0.27 |
|
IGWK-40 |
40 |
96 |
60 |
114 |
60 |
36 |
90 |
11.0 |
15.0 |
6 |
0.42 |
| All dimensions in the table are in [mm], unless stated otherwise. | |||||||||||
AlAluminum
