Shaft support blocks
Made of aluminum; precision shaft support blocks provide stable and precise mounting offering a balance between rigidity and low weight, making them an ideal choice for high-dynamic applications with strict weight limitations.
ITA

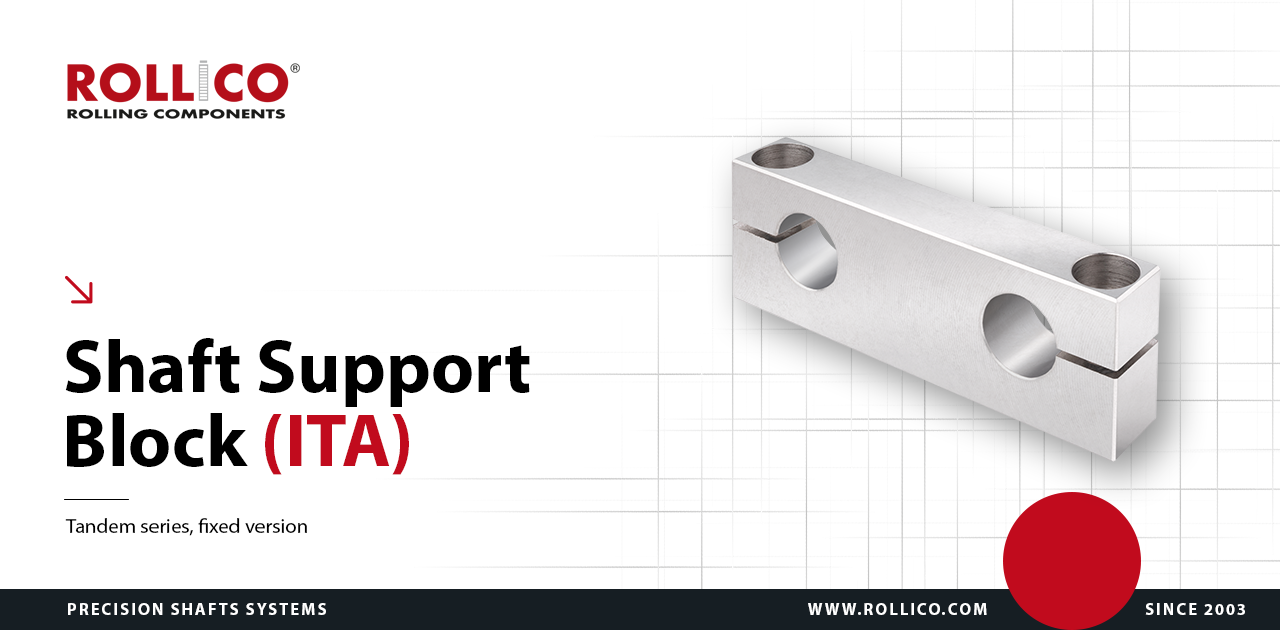

ITA-type shaft support blocks
Tandem series; fixed version
Tandem series; fixed version
Technical drawing of ITA type shaft support block
Dimension table of ITA type shaft support blocks
|
Type |
Ød |
A |
B |
H |
h |
R |
E |
Ød1 |
Ød2 |
N2 |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITA-08 |
8 |
65 |
12 |
23 |
12.5 |
32 |
52 |
5.5 |
10 |
16.6 |
0.04 |
|
ITA-12 |
12 |
85 |
14 |
32 |
18 |
42 |
70 |
6.6 |
11 |
23.5 |
0.09 |
|
ITA-16 |
16 |
100 |
18 |
36 |
20 |
54 |
82 |
9 |
15 |
26.5 |
0.14 |
|
ITA-20 |
20 |
130 |
20 |
46 |
25 |
72 |
108 |
11 |
18 |
32.5 |
0.26 |
|
ITA-25 |
25 |
160 |
25 |
56 |
30 |
88 |
132 |
13.5 |
20 |
40 |
0.47 |
|
ITA-30 |
30 |
180 |
25 |
64 |
35 |
96 |
150 |
13.5 |
20 |
48 |
0.63 |
|
ITA-40 |
40 |
230 |
30 |
80 |
44 |
122 |
190 |
17.5 |
26 |
59 |
1.10 |
|
ITA-50 |
50 |
280 |
30 |
96 |
52 |
152 |
240 |
17.5 |
26 |
75 |
1.65 |
| All dimensions in the table are in [mm], unless stated otherwise. | |||||||||||
AlAluminum
