Shaft support blocks
Made of aluminum; precision shaft support blocks provide stable and precise mounting offering a balance between rigidity and low weight, making them an ideal choice for high-dynamic applications with strict weight limitations.
ITAC

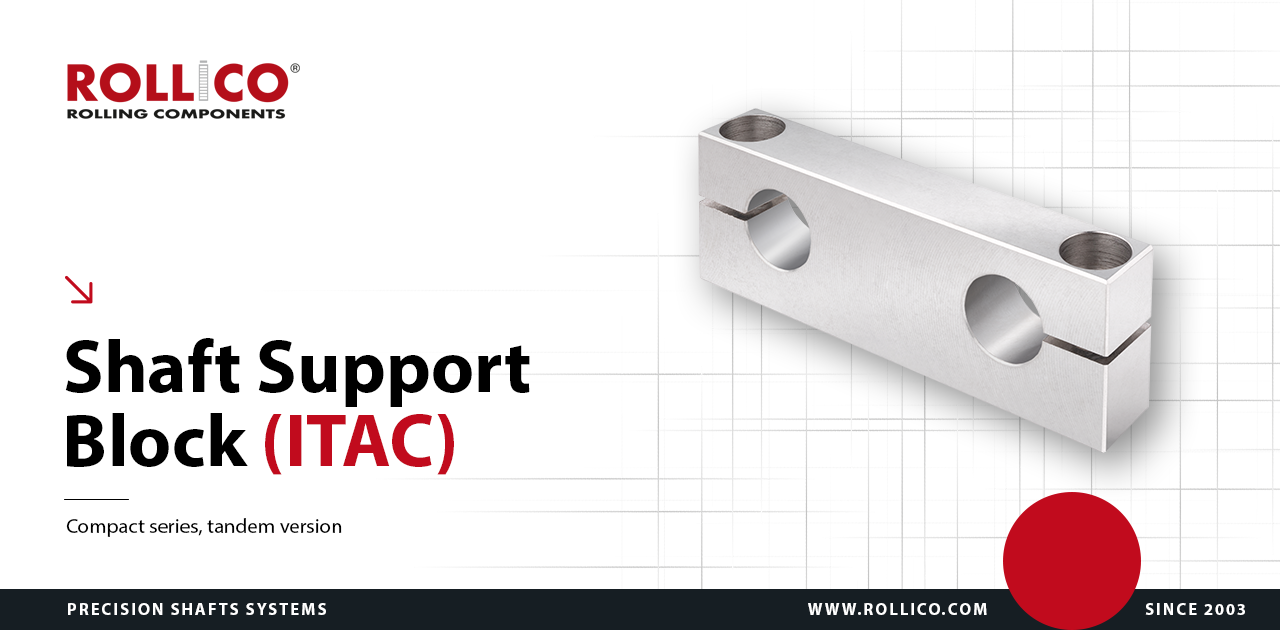

ITAC-type shaft support blocks
Compact series, tandem version
Compact series, tandem version
Technical drawing of ITAC type shaft support block
Dimension table of ITAC type shaft support blocks
|
Type |
Ød |
A |
B |
H |
h |
R |
E |
Ød1 |
Ød2 |
N2 |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITAC-12 |
12 |
80 |
15 |
30 |
17 |
40 |
64 |
6.5 |
11 |
21.5 |
0.10 |
|
ITAC-16 |
16 |
96 |
15 |
35 |
19.5 |
52 |
80 |
6.6 |
11 |
26.5 |
0.15 |
|
ITAC-20 |
20 |
115 |
18 |
40 |
22 |
63 |
97 |
9 |
15 |
28 |
0.20 |
|
ITAC-25 |
25 |
136 |
20 |
50 |
27 |
75 |
115 |
11 |
18 |
36.5 |
0.25 |
|
ITAC-30 |
30 |
146 |
20 |
56 |
31 |
80 |
125 |
11 |
18 |
42.5 |
0.35 |
|
ITAC-40 |
40 |
184 |
25 |
70 |
38 |
97 |
160 |
13.5 |
50 |
54 |
0.65 |
|
ITAC-50 |
50 |
210 |
30 |
80 |
43 |
107 |
180 |
17.5 |
26 |
59 |
0.85 |
| All dimensions in the table are in [mm], unless stated otherwise. | |||||||||||
AlAluminum
