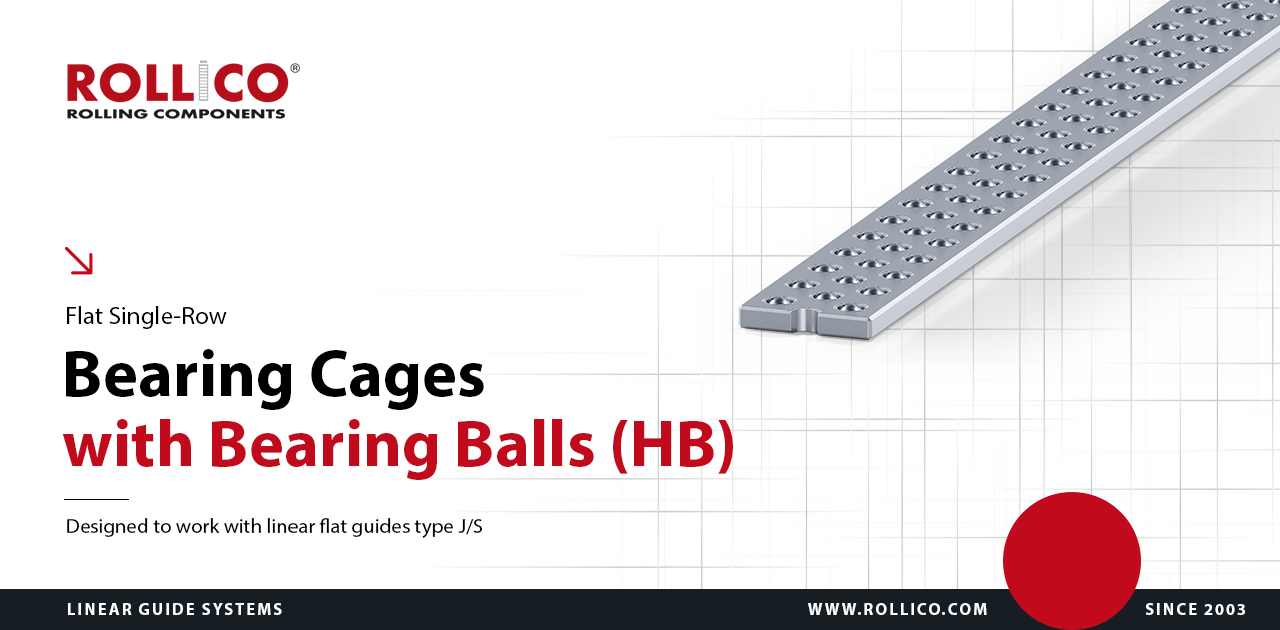

The linear bearing cage is an essential component of a linear rolling bearing built with the use of linear guides. The main task of the bearing cage is to hold the rolling elements inside the bearing on the guide's raceways in the correct operating position.
Manufactured from profiles of light metals - aluminium (Al)
High precision and long lifetime
Destined for accurate machinery and equipment with exceptional quality of linear motion control
Working temperature up to 150°C
Technical drawing of HB bearing cages
Dimension table of HB bearing cages
Ball
diameter
Ø
Type
/symbol
Dimensions
Load capacity *
Functional dimension
A
DW
e
t
LK
max
C
[N]
CO
[N]
Ha
2.5
HB 2515
15
2.5
4.5
3
2 000
3 230
2 920
15.3+0.2
3.0
HB 3015
15
3
3.5
3.5
2 000
4 210
3 540
15.3+0.2
3.0
HB 3020
20
3
4
3.5
2 000
5 150
4 720
20.3+0.2
3.0
HB 3023
23
3
5.5
3.5
2 000
5 150
4 720
23.4+0.2
4.0
HB 4025
25
4
5
5
2 000
7 630
5 910
25.4+0.2
*) - Load capacity for the theoretical length of the cage of 100 mm with the thrust force "F" in accordance to the drawing.
- The load capacity is calculated for guides with hardness of 60 +/- 2 HRc oand surface roughness of Ra<0.4.
- Load capacity of bearing cages is calculated on the basis of number of bearing needles mounted in the cage
- Length tolerance LK +0/-t
Weight table of HB bearing cages
Table for weight values of bearing cages
(for the length of Lk=1000 mm) [g]
Type/symbol
Aluminium
HB 2515
95
HB 3015
120
HB 3020
167
HB 3023
187
HB 4025
250
