The linear bearing cage is an essential component of a linear rolling bearing built with the use of linear guides. The main task of the bearing cage is to hold the rolling elements inside the bearing on the guide's raceways in the correct operating position.

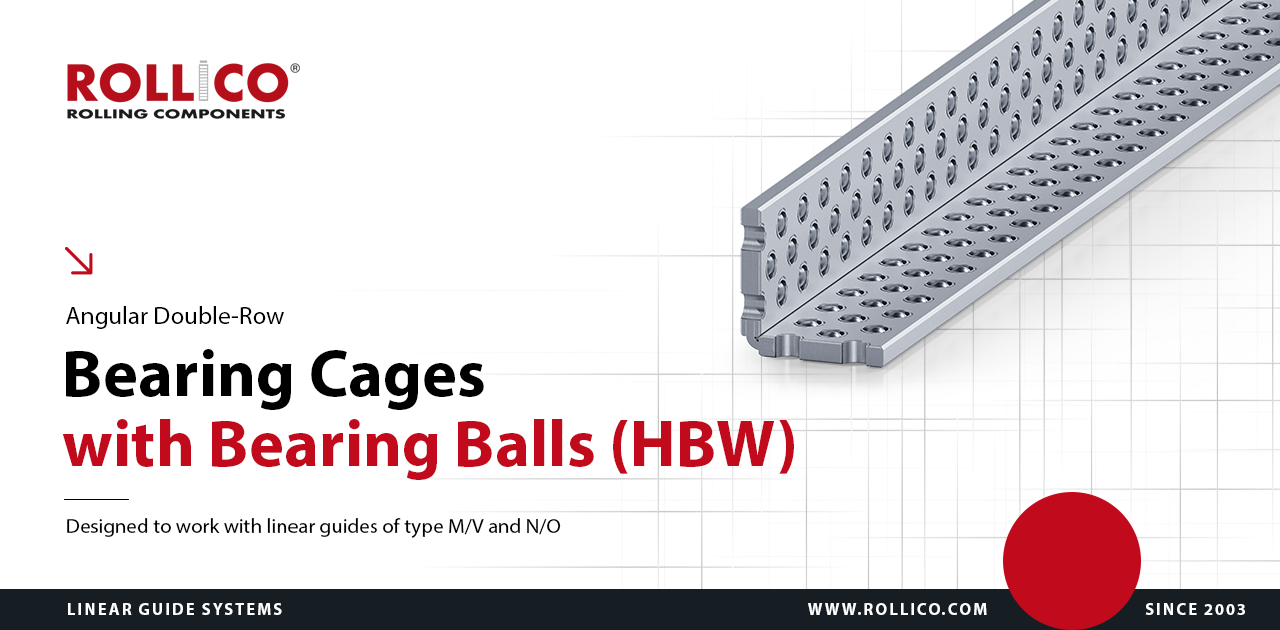

Angular double-row bearing cages with bearing balls
Manufactured from profiles of light metals - aluminium (Al)
High precision and long lifetime
Destined for accurate machinery and equipment with exceptional quality of linear motion control
Working temperature up to 120°C
Technical drawing of HBW bearing cages
Dimension table of HBW bearing cages
Ball
diameter
Ø
Type/symbol
Dimensions
Load capacity *
A
DW
e
f
t
LK
max
C
[N]
CO
[N]
3
HBW 3x18x18
18
3
3.5
6.5
3.5
1 000
5 970
5 020
3
HBW 3x23x23
23
3
4
7
3.5
1 000
7 300
6 690
*) - Load capacity for the theoretical length of the cage of 100 mm with the thrust force "F" in accordance to the drawing.
- The load capacity is calculated for guides with hardness of 60 +/- 2 HRc oand surface roughness of Ra<0.4.
- Load capacity of bearing cages is calculated on the basis of number of bearing needles mounted in the cage
- Length tolerance LK +0/-t
Weight table of HBW bearing cages
Table for weight values of bearing cages
(for the length of Lk=1000 mm) [g]
Type/symbol
Aluminum
HBW 3x18x18
300
HBW 3x23x23
480
