The linear bearing cage is an essential component of a linear rolling bearing built with the use of linear guides. The main task of the bearing cage is to hold the rolling elements inside the bearing on the guide's raceways in the correct operating position.

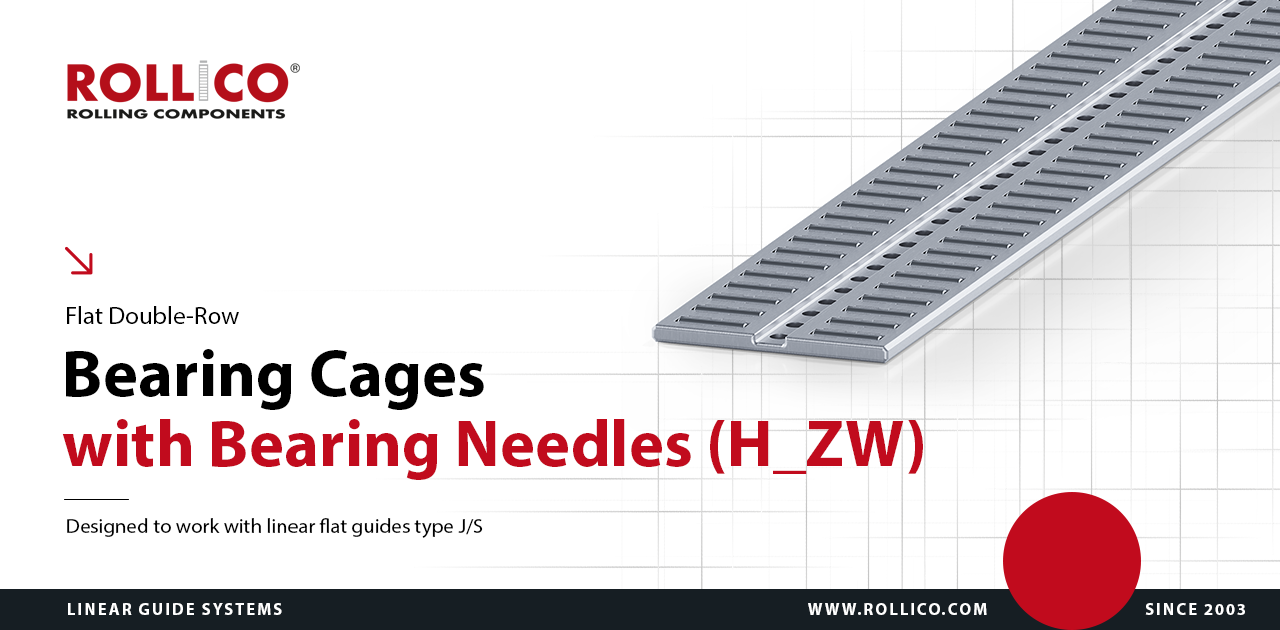

Flat double-row bearing cages with bearing needles
Manufactured from profiles of light metals - aluminium (Al), brass (Ms) or steel (F)
High precision and strength at low deadweight (aluminium)
Destined for heavy-duty working conditions at high loads and accelerations
Working temperature up to 150°C
Technical drawing of H_ZW bearing cages
Dimension table of H_ZW bearing cages
Needle
diameter
Ø
Type/symbol
Dimensions
Load capacity *
Functional dimension
A
DW
LW
t
e
LK
max
C
[N]
CO
[N]
Ha
2
H 19 ZW
19.2
2
4.8
4
3
2 000
30 300
97 200
19.6+0.2
2
H 24 ZW
24
2
6.8
4.5
3.5
2 000
37 000
125 700
24.4+0.2
2
H 30 ZW
30
2
8.8
3.8
2.8
2 000
52 200
194 700
30.5+0.2
2.5
H 34 ZW
33.5
2.5
9.8
5.5
4
2 000
57 000
188 800
34.0+0.2
3
H 44 ZW
44
3
13.8
6
4.5
2 000
88 900
296 100
44.5+0.2
3.5
H 55 ZW
55
3.5
17.8
7
5
2 000
117 000
380 000
55.5+0.2
*) - Load capacity for the theoretical length of the cage of 100 mm with the thrust force "F" in accordance to the drawing.
- The load capacity is calculated for guides with hardness of 60 +/- 2 HRc oand surface roughness of Ra<0.4.
- Load capacity of bearing cages is calculated on the basis of number of bearing needles mounted in the cage
- Length tolerance LK +0/-t
Weight tableof H_ZW bearing cages
Table for weight values of bearing cages
(for the length of Lk=1000 mm) [g]
Type/symbol
Aluminum
Steel
Brass
H 19 ZW
105
219
230
H 24 ZW
138
289
306
H 30 ZW
190
-
390
H 34 ZW
239
471
499
H 44 ZW
408
756
798
H 55 ZW
598
1117
1178
